FRP 6-seater Toilet Van

Product Description

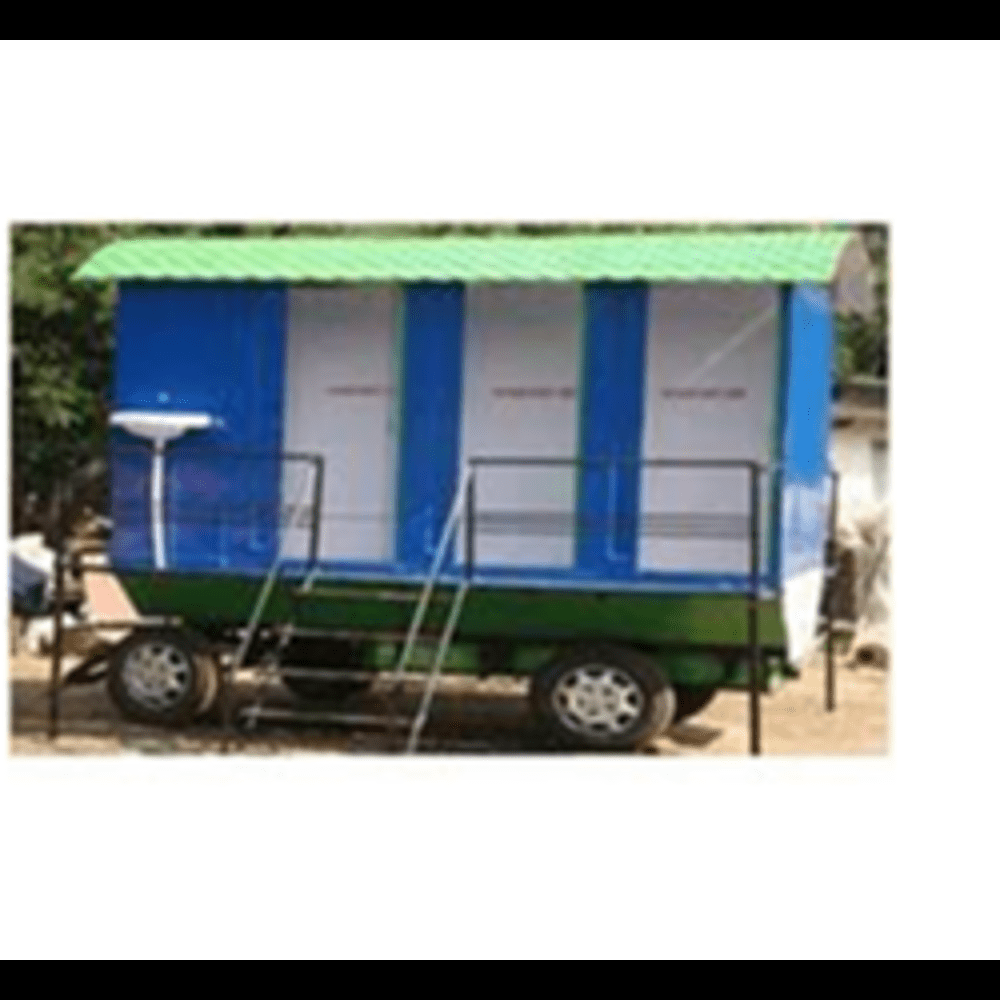

FRP 6-SEATER TOILET VAN SP-37

 Toilet Size:- 12ft x 8ft

 Toilet Seat:- India Style Seat

 Structure:- 1" x 1" MS square pipe & angle

 Panelling:- FRP material of 3mm thickness

 Doors:- FRP material of 3mm thickness

 Roof:- FRP material of 3mm thickness

 Wash Basin:- 01 no. for Gents & 01 no. for Ladies

 Water Tank:- Overhead water tank of 800-1000 litres

capacity

 Sludge Tank:- Beneath of 800-1000 litres capacity

Fitting:- Water filling line at the front of the toilet van;

Sludge drain valve 100mm dia heavy duty butterfly valve

provided at the rear of the unit

 Print Process : Anti Corrosive Polly Urethane paint over

two coat of Epoxy primer, Respective words of FOR

GENTS FOR LADIES MOBILE TOILET Written on

both sides, Water tank with internally painted by Epoxy

primer.

Trailer Specification

1 Trailer size : 15X 10.7 X 8

2 Chassis Frame : Four wheel chassis with heavy duty

made from ISMC 125 X 65 mm channel.

3 Tyre : 4 nos. of tyre with tube flap with size of 616 X 16

4 Axles : 2 Nos. of axel with size of 60X60mm M.S.

5 Hub : 4 Nos. with material of cast steel

Wheel : 4 Nos.
